Fuse Series

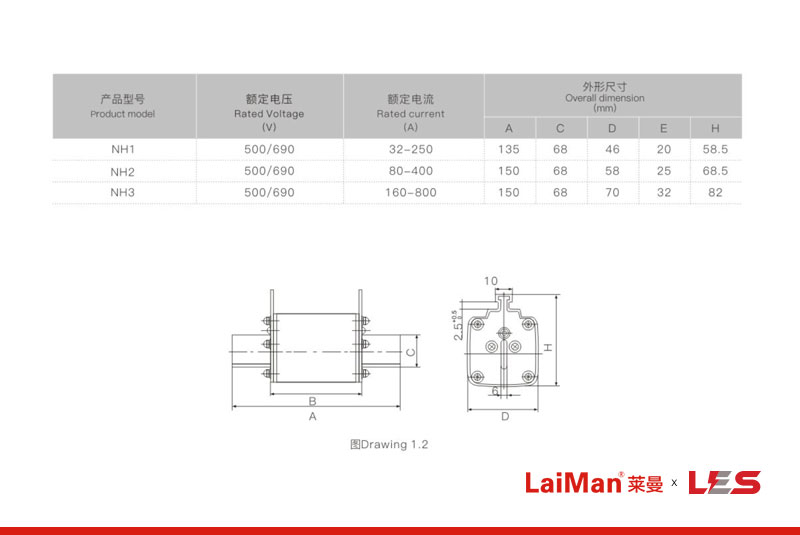

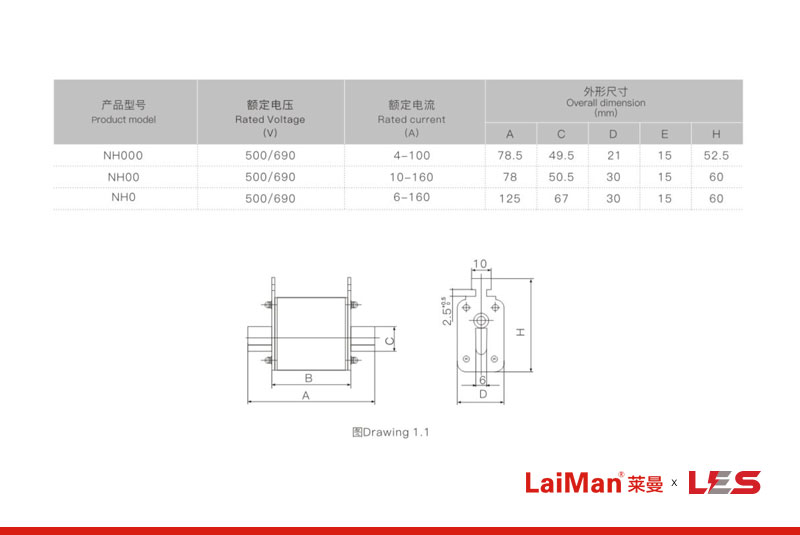

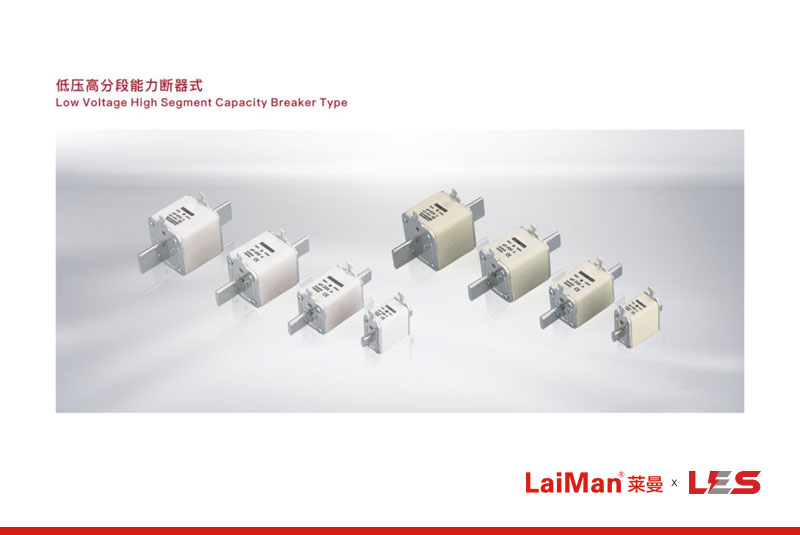

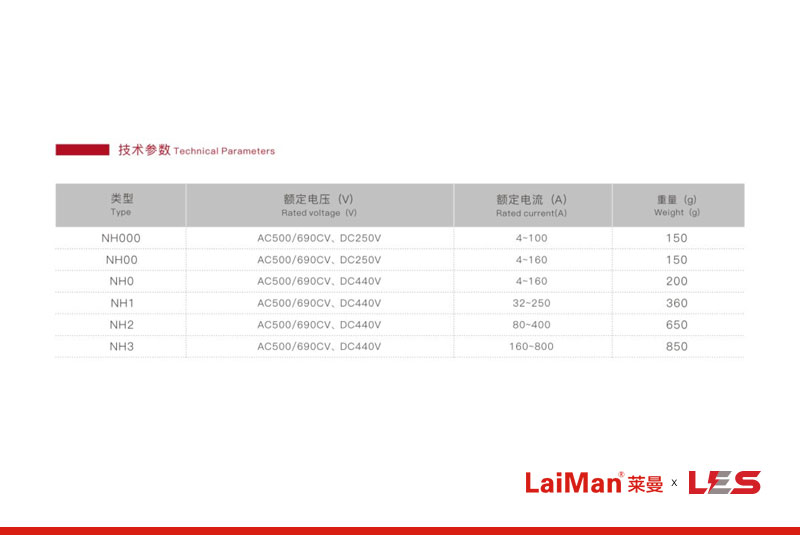

Low Voltage High Segment Capacity Breaker Type
This series of fuse links is mainly used in AC 50Hz, rated voltage up to 1140V, rated current up to 1250A

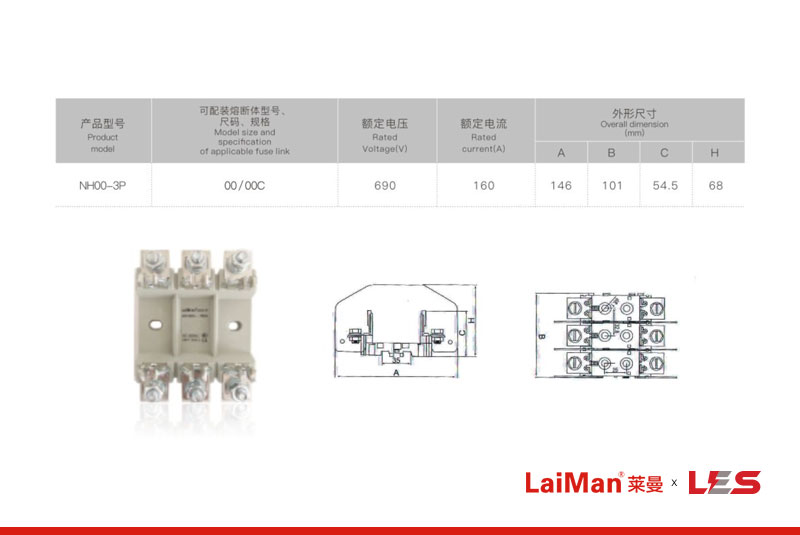

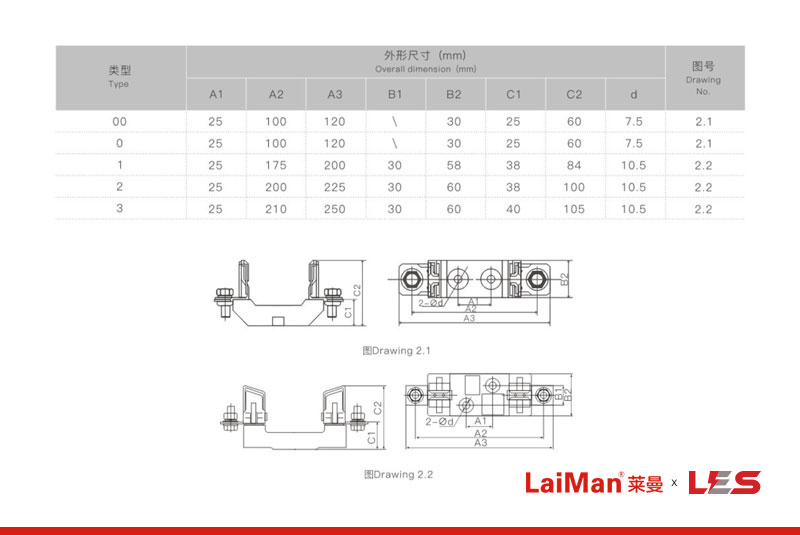

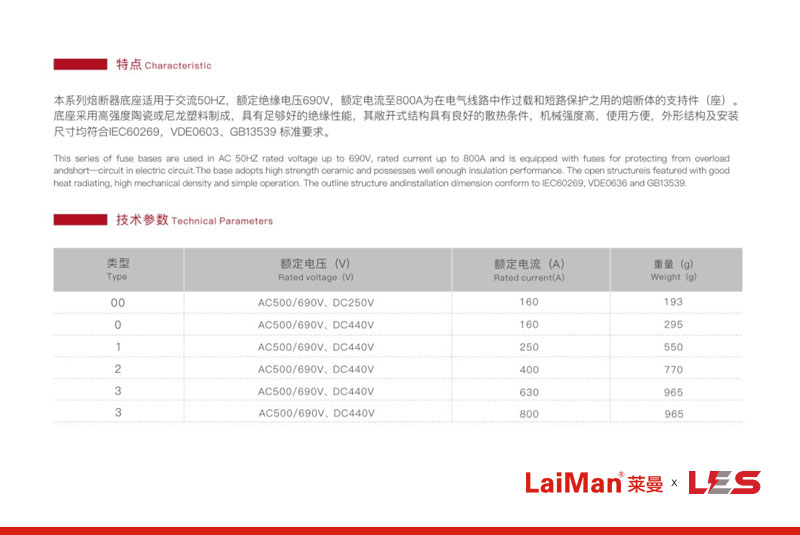

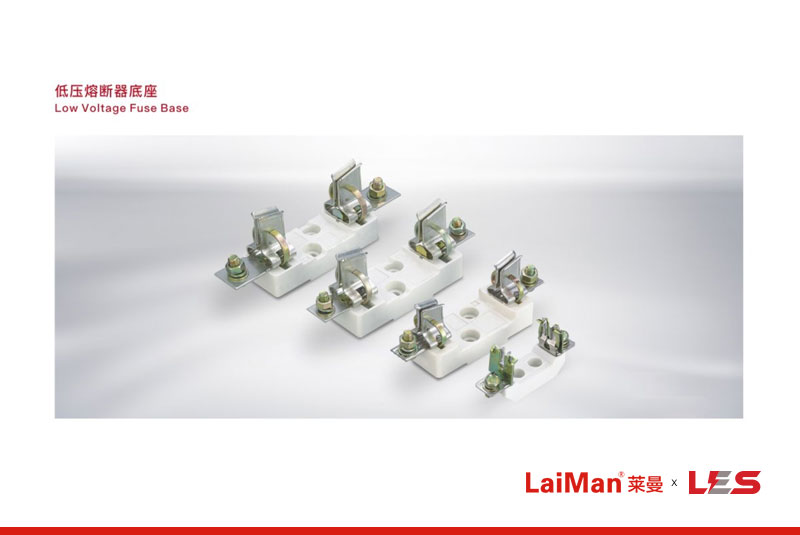

Low Voltage Fuse Base
This series of fuse based are used in AC 50HZ rated voltage up to 690V， rated current up to 800A and is equipped with fuses for protecting from overload and short-circuit in electric circuit.

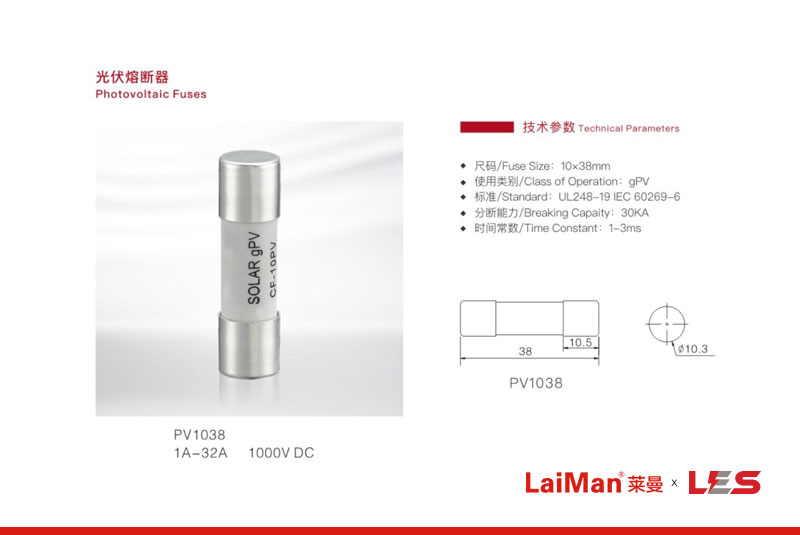

Photovoltaic Fuses -PV1038
- Fuse Size: 10x38mm
- Class of Operation: gPV
- Standard: UL248-19 IEC 60269-6
- Breaking Capaity: 30KA
- Time Constant: 1-3ms

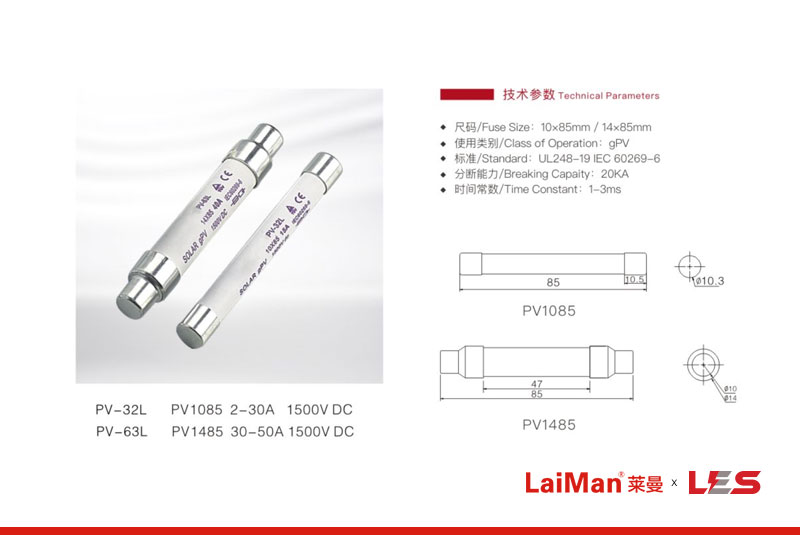

Photovoltaic Fuses PV-32L & PV-63L
- Fuse Size: 10x85mm / 14x85mm
- Class of Operation: gPV
- Standard: UL248-19 IEC 60269-6
- Breaking Capaity: 20KA
- Time Constant: 1-3ms

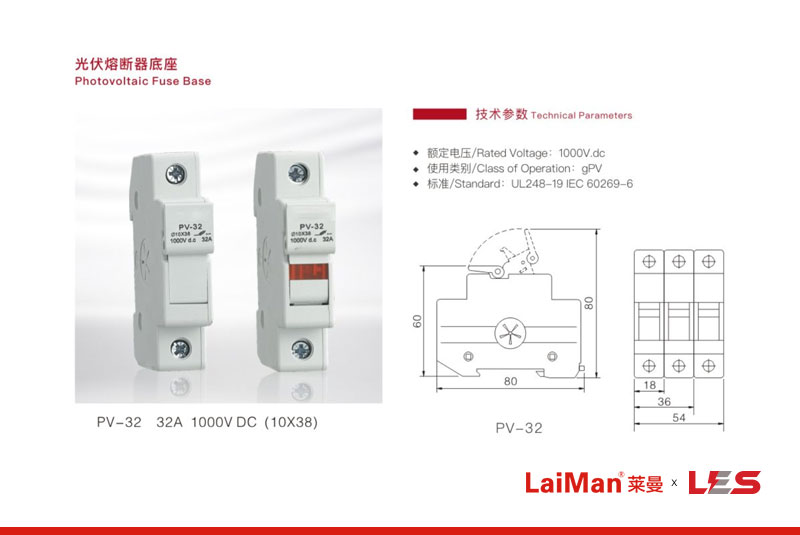

Photovoltaic Fuse Base - PV32
- Rated Voltage: 1000V.dc
- Class of Operation: gPV
- Standard: UL248-19 IEC 60269-6

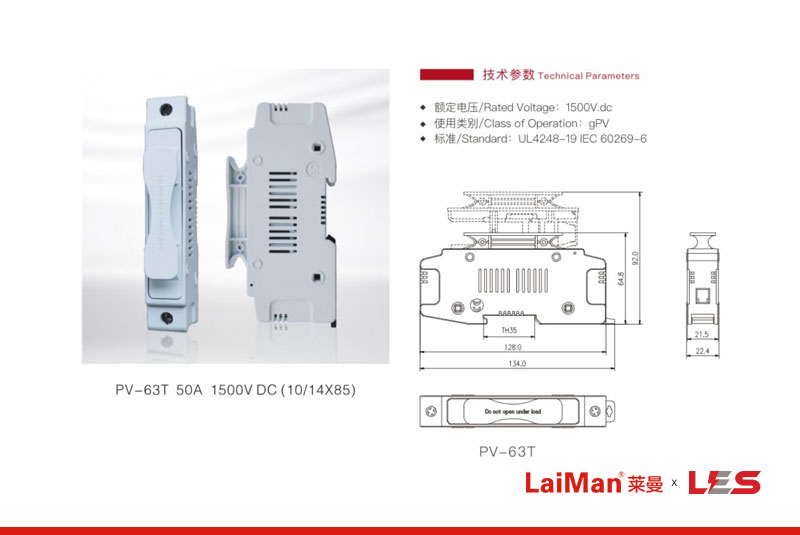

Photovoltaic Fuses Base- PV-63T
- Rated Voltage: 1500.dc
- Class of Operation: gPV
- Standard: UL4248-19 IEC 60269-6
